Flowtables Firewall Configuration

Call for Contributions

Help improve this section with additional content, examples, and explanations.

For contribution guidelines, see Write Documentation.

Overview

This section provides information on firewall configuration for flowtables.

set firewall flowtable …

To learn about the general traffic flow in VyOS firewalls, see Firewall.

- set firewall
    * flowtable
         - custom_flow_table
            + ...

Flowtables let you define a fastpath through the flowtable datapath. Flowtables support layer 3 (IPv4 and IPv6) and layer 4 (TCP and UDP) protocols.

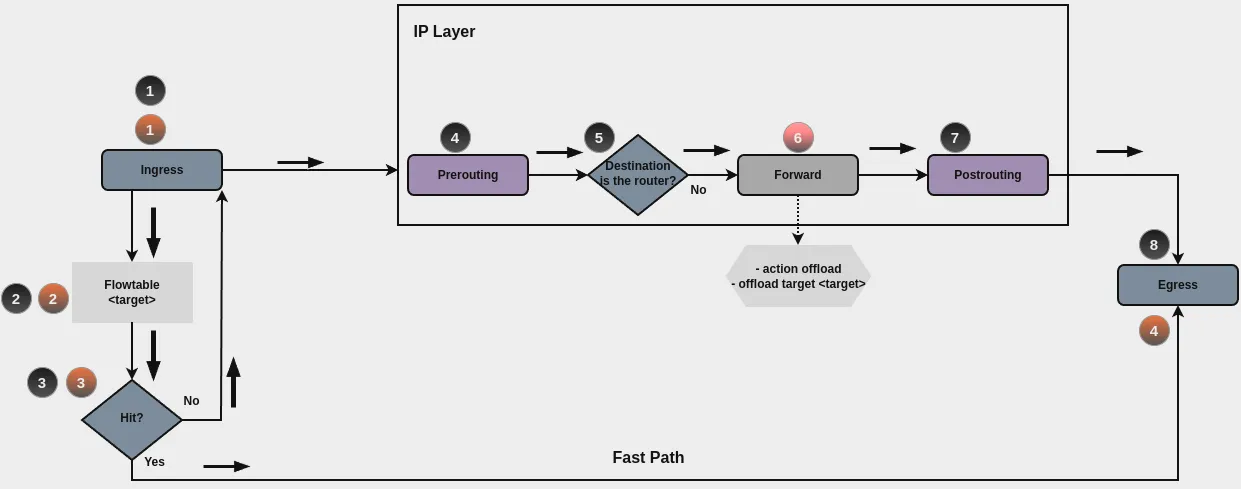

../../_images/firewall-flowtable-packet-flow.webp

After the first packet successfully traverses the IP forwarding path (black circles path), you can offload subsequent packets to the flowtable through your ruleset. You specify when to add a flow to the flowtable during forward filtering (red circle number 6).

When a packet finds a matching entry in the flowtable (flowtable hit), the system transmits it to the output netdevice. This means packets bypass the classic IP forwarding path and use the Fast Path (orange circles path). As a result, you do not see these packets from any Netfilter hooks after ingress. If no matching entry exists in the flowtable (flowtable miss), the packet traverses the classic IP forwarding path.

Note

Flowtable Reference: https://docs.kernel.org/networking/nf_flowtable.html

Flowtable Configuration

To use flowtables, you need to configure the following:

  • Create a flowtable that includes the interfaces that are going to be used by the flowtable.

  • Create a firewall rule. Set the action to offload and use your desired flowtable for offload-target.

Creating a flow table:

set firewall flowtable <flow_table_name> interface <iface> Specify interfaces to use in the flowtable.
set firewall flowtable <flow_table_name> description <text>

Provide a description for the flow table.

set firewall flowtable <flow_table_name> offload <hardware | software>

Specify the offload type the flowtable uses: hardware or software. The default is software offload.

Note

Hardware offload: Make sure your network interface controller (NIC) supports hardware offloading and that you have the necessary drivers installed before enabling this option.

Creating rules for using flow tables:

set firewall [ipv4 | ipv6] forward filter rule <1-999999> action offload

Create a firewall rule in the forward chain with the action set to offload.

set firewall [ipv4 | ipv6] forward filter rule <1-999999> offload-target <flowtable>

Create a firewall rule in the forward chain and specify which flowtable to use. Only applicable if the action is offload.

Interface Selection

Important

Always configure the flowtable with the interface that VyOS observes at the forward hook — which is not necessarily the physical interface. When traffic is received or transmitted via a logical interface, VyOS tracks that logical interface, not the underlying physical device. Registering the wrong interface in the flowtable causes every flow lookup to miss, falling back to the classic forwarding path and defeating the purpose of fast-path offload.

Configuration Example

Consider the following in this setup:

  • This example uses two interfaces in the flowtables: eth0 and eth1.

  • The example provides a minimal firewall ruleset with filtering rules and rules for using flowtable offload capabilities.

The first packet is evaluated by the firewall path, so a desired connection should be explicitly accepted. The same should occur for traffic in reverse order. In most cases, state policies are used to accept a connection in the reverse path.

In the following example only traffic coming from interface eth0, TCP protocol, and destination port 1122 is accepted. All other traffic to the router is dropped.

Commands

set firewall flowtable FT01 interface 'eth0'
set firewall flowtable FT01 interface 'eth1'
set firewall ipv4 forward filter default-action 'drop'
set firewall ipv4 forward filter rule 10 action 'offload'
set firewall ipv4 forward filter rule 10 offload-target 'FT01'
set firewall ipv4 forward filter rule 10 state 'established'
set firewall ipv4 forward filter rule 20 action 'accept'
set firewall ipv4 forward filter rule 20 state 'established'
set firewall ipv4 forward filter rule 20 state 'related'
set firewall ipv4 forward filter rule 110 action 'accept'
set firewall ipv4 forward filter rule 110 destination address '192.0.2.100'
set firewall ipv4 forward filter rule 110 destination port '1122'
set firewall ipv4 forward filter rule 110 inbound-interface name 'eth0'
set firewall ipv4 forward filter rule 110 protocol 'tcp'

Explanation

Here’s what happens for a desired connection:

  1. A packet arrives on eth0 with destination address 192.0.2.100, TCP protocol, and destination port 1122. Assume this address is reachable through interface eth1.

  2. For this first packet, the connection state is new. Neither rule 10 nor rule 20 applies.

  3. Rule 110 matches, so the connection is accepted.

  4. When the server 192.0.2.100 replies, the connection state becomes established, and rule 20 accepts the reply.

  5. The router receives the second packet for this connection. Because the connection state is established, rule 10 matches and adds a new entry in the flowtable FT01 for this connection.

  6. Subsequent packets skip the traditional path and use the Fast Path for offloading.

Flowtable Configuration on Logical and Sub-Interfaces

Configure the flowtable with the interface name you used in VyOS configuration. When VLANs, bonds, or bridges are involved, that is the logical interface (bond0, br0, eth0.10) — not the underlying physical port.

For example:

  • If bond0 is configured, VyOS sees bond0 — not eth0 or eth1

  • If br0 is configured, VyOS sees br0 — not its member interfaces

  • The flowtable must reference the same interface name VyOS observes

Two forms are accepted, but registering the parent is recommended:

  • Registering bond1 offloads the parent interface and all its VLAN sub-interfaces (bond1.10, bond1.20, etc.) — the kernel automatically discovers them by parsing L2 headers (Linux 5.13+).

  • Registering bond1.10 directly offloads only VLAN 10 traffic. But the sub-interface must exist at commit time; if it is not yet present when the ruleset is loaded, the configuration might fail.

# Offload bond1 and all sub-interfaces (bond1.10, bond1.20, ...)
set firewall flowtable FT01 interface 'bond1'

# Offload VLAN 10 only: register the sub-interface directly
set firewall flowtable FT01 interface 'bond1.10'

Example: Mixed parent and sub-interface offload

Consider a setup where:

  • Traffic ingresses on bond1.10 (VLAN 10)

  • Traffic egresses on bond2.20 (VLAN 20)

set firewall flowtable FT01 interface 'bond1'
set firewall flowtable FT01 interface 'bond2.20'
set firewall ipv4 forward filter default-action 'drop'
set firewall ipv4 forward filter rule 10 action 'offload'
set firewall ipv4 forward filter rule 10 offload-target 'FT01'
set firewall ipv4 forward filter rule 10 state 'established'
set firewall ipv4 forward filter rule 20 action 'accept'
set firewall ipv4 forward filter rule 20 state 'established'
set firewall ipv4 forward filter rule 20 state 'related'
set firewall ipv4 forward filter rule 200 action 'accept'
set firewall ipv4 forward filter rule 200 inbound-interface name 'bond*'

In this configuration:

  • bond1 covers ingress from bond1.10 and any other bond1 sub-interfaces.

  • bond2.20 offloads VLAN 20 only — other bond2 sub-interfaces remain on the standard forwarding path. This illustrates how to selectively offload a single VLAN while leaving others on the slow path.

  • Rule 200 uses a wildcard to accept any traffic arriving on any bond interface or sub-interface before the flow reaches established state and is eligible for offload

  • Once a flow is established, rule 10 adds it to the flowtable and subsequent packets bypass the forward hook entirely via the fast path

Note

The interface directions in this example are from the perspective of client-to-server traffic. In practice each interface handles traffic in both directions, and the flowtable manages offload symmetrically once the flow is established. To confirm the ingress and egress interfaces, enable log on a rule in the forward hook and check the firewall logs — see the Firewall section for configuration.

Checks

Check the conntrack table to verify that the system accepted and properly offloaded connections.

vyos@FlowTables:~$ show firewall ipv4 forward filter
Ruleset Information

---------------------------------
ipv4 Firewall "forward filter"

Rule     Action    Protocol      Packets    Bytes  Conditions
-------  --------  ----------  ---------  -------  ----------------------------------------------------------------
10       offload   all                 8      468  ct state { established, related }  flow add @VYOS_FLOWTABLE_FT01
20       accept    all                 8      468  ct state { established, related }  accept
110      accept    tcp                 2      120  ip daddr 192.0.2.100 tcp dport 1122 iifname "eth0"  accept
default  drop      all                 7      420

vyos@FlowTables:~$ show conntrack table ipv4
Original src        Original dst    Reply src        Reply dst           Protocol    State    Timeout    Mark    Zone
------------------  --------------  ---------------  ------------------  ----------  -------  ---------  ------  ------
198.51.100.100:41676  192.0.2.100:1122  192.0.2.100:1122  198.51.100.100:41676  tcp                  n/a        0

Interface identification

To verify that VyOS identifies traffic by its logical sub-interface and not the underlying physical device, inspect the firewall log:

vyos@FlowTables:~$ show log firewall
Jun 18 22:22:00 kernel: [ipv4-FWD-filter-200-A] IN=bond1.10 OUT=bond2.20 \
  MAC=00:53:00:00:00:02:00:53:00:00:00:01:08:00 SRC=192.168.10.2 \
  DST=192.168.20.2 LEN=84 PROTO=ICMP TYPE=8 CODE=0 ID=3572 SEQ=1

The IN and OUT fields show bond1.10 and bond2.20 — the logical sub-interfaces — not the underlying physical or bond device.

Flowtable offload

Run the following command to verify that the connections are offloaded to the flowtable fast path:

vyos@FlowTables:~$ show conntrack table ipv4
Original src        Original dst       Reply src          Reply dst           Protocol    State    Timeout    Mark    Zone
------------------  -----------------  -----------------  ------------------  ----------  -------  ---------  ------  ------
192.168.10.2:45140  192.168.20.2:5201  192.168.20.2:5201  192.168.10.2:45140  tcp                  n/a        0
192.168.10.2:45124  192.168.20.2:5201  192.168.20.2:5201  192.168.10.2:45124  tcp                  n/a        0


vyos@FlowTables:~$ show conntrack table ipv4
Original src        Original dst       Reply src          Reply dst           Protocol    State      Timeout    Mark    Zone
------------------  -----------------  -----------------  ------------------  ----------  ---------  ---------  ------  ------
192.168.10.2:45124  192.168.20.2:5201  192.168.20.2:5201  192.168.10.2:45124  tcp         TIME_WAIT  105        0

Entries with Timeout shown as n/a and a blank State confirm that the flows are offloaded to the flowtable fast path — subsequent packets bypass the firewall entirely. Once the TCP session closes, the entry transitions to TIME_WAIT and the timeout counter resumes.
